Connect EDMI Meter

By bang yud , 3 April, 2023
Forums
DLMSDirector

Hi Kurumi,
I would like to connect EDMI Meter Mk7Mi and MK10M, but i got confused, where should i put Serial number of the meter (Sample : 3900007474) in properties of GSDLMSDirector, Please Your guidence, Thanks..

bang yud

3 years 2 months ago

HI Kurumi,
for edmi meter above, where can i get value for Logical Server, client address and Physical Server, <strong>Im still can't connect to both meter</strong>.

Btw, im using rj45 to rs232 for connect meter to my PC, Please your guidence..

Thanks

Kurumi

3 years 2 months ago

Hi,

The meter reply data is not correct and I'll remove it because it makes reading harder. Are you using RS-232 or optical probe?

Make sure that there is a DLMS label on the meter.

If you are using RS-232, you need to check your serial port settings. I was connect using optical probe with settings:

Interface: HdlcWithModeE
Client address: 10
Authentication None:
Logical Server: 1
Physical Server: 23

Meter is Mk7Mi. Manufacturing year is 2019.

BR,
Mikko

bang yud

3 years 2 months ago

Hi Miko,
I'm using rs232, and i have check the port serial, baud rate :9600 ,

can i use this parameter for rs232,and HDLC interface ??

Thanks for your guideline..

bang yud

3 years 2 months ago

Hi Kurumi, i have set up my baud rate 9600, then i got this :

22:21:12 Send SNRM request.
TX: 7E A0 08 02 47 21 93 91 02 7E
22:21:17 Data send failed. Try to resend 1/3
22:21:22 Data send failed. Try to resend 2/3
22:21:28 Failed to receive reply from the device in given time.
22:21:28 Send Disconnect request.
TX: 7E A0 08 02 47 21 53 9D C4 7E
22:21:33 Data send failed. Try to resend 1/3
22:21:38 Data send failed. Try to resend 2/3
22:21:44 Failed to receive reply from the device in given time.

The Meter doesnt reply anything, am I wrong??, I have attached my baud rate setting,,
Thanks for kind help..


bang yud

3 years 2 months ago

Hi Kurumi,

I Tried to connect again, then i got the same result (data is not correct like you said before) , such as the first time...

bang yud

3 years 2 months ago

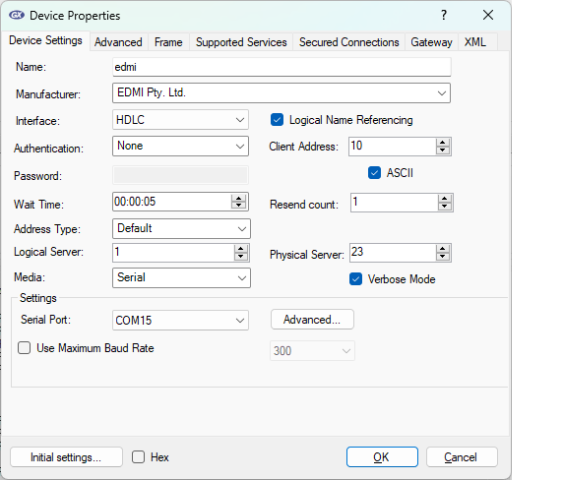

Here i attached my properties setting.

Thanks for your help..


Kurumi

3 years 2 months ago

Hi,

Your meter settings look the same as mine. Baud rate might be something else than the 9600. I have already asked, but make sure that there is a DLMS logo on the meter. There might be different versions from the meter, even the model is the same.

BR,
Mikko

Kurumi

3 years 2 months ago

Hi,

Your meter model is the same as what we have. I'll check the correct settings in the next week.

BR,
Mikko

Kurumi

3 years 1 month ago

Hi Bang Yud,

I'm sorry for the slow reply. I wasn't able to find RJ45 to DB9 cables anywhere and the new cables are ordered. I'll let you know as soon as the new cable is in the office. I just checked it and it should be here latest on Tuesday.

I'll let you know as soon I have more info.

BR,
Mikko
