Kamstrup OMNIpower Connecting to CCC Module

Forum Rules

Before commenting read Forum rules

Don't comment the topic if you have a new question.

You can create a new topic selecting correct category from Gurux Forum and then create a new topic selecting "New Topic" from the top left.

By Martin Hallberg , 15 June, 2016
Forums
DLMSDirector

Hi.
I am trying to connect to the CCC Module interface but only get a error message.

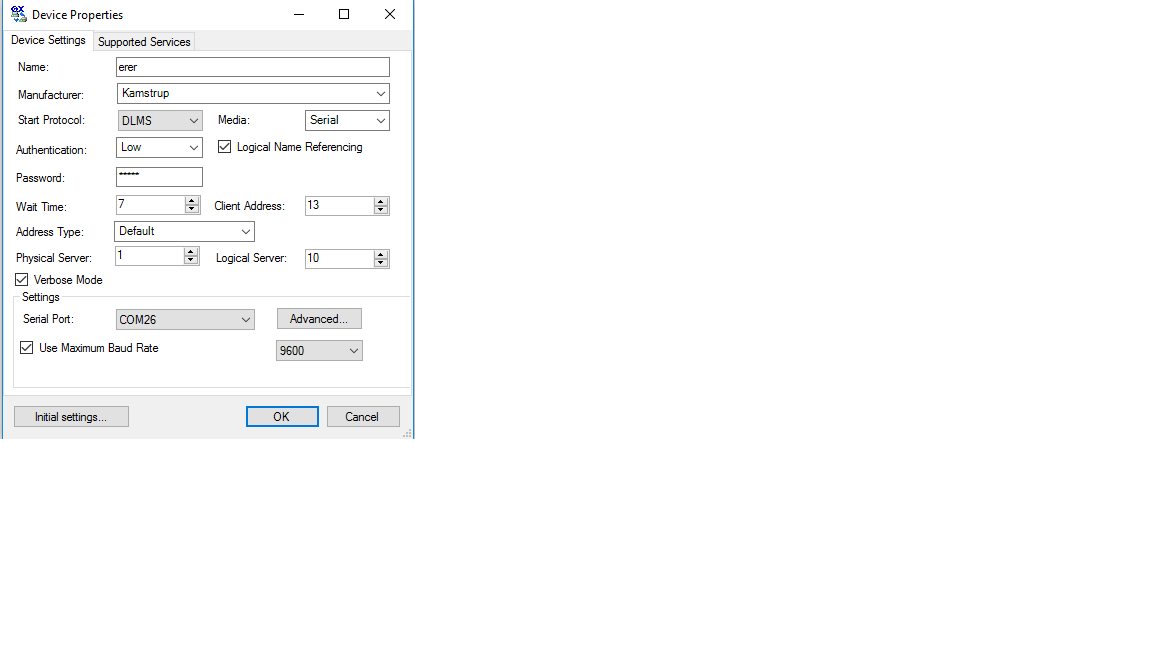

I am using Gurux GXDLMS Editor version 8.0.0.20

16:02:22 Initializing serial connection.
16:02:22 04:02:22.129 Info Opening
16:02:22 04:02:22.129 Info Serial Port Settings: Port Name: COM26 Baud Rate: 9600 Data Bits: 8 Parity: None Stop Bits: One Eop: None
16:02:22 04:02:22.413 Info Open
16:02:22 Send SNRM request.
7E A0 08 20 03 27 93 73 85 7E
16:02:22 04:02:22.413 Sent 7E A0 08 20 03 27 93 73 85 7E
16:02:29 Failed to receive reply from the device in given time.
16:02:29 04:02:29.414 Info Closing
16:02:29 04:02:29.432 Info Closed
System.Exception: Failed to receive reply from the device in given time.
vid GXDLMSDirector.GXDLMSDevice.InitializeConnection() i C:\Projects\GXDLMSDirector\Development\GXDLMSDevice.cs:rad 384
vid GXDLMSDirector.MainForm.Connect(Control sender, Object[] parameters) i C:\Projects\GXDLMSDirector\Development\MainForm.cs:rad 929

Accrding to Kamstrup the settings for the CCC Module interface should be:

CCC Module interface Association with Low Level security (Password protected):
- Client SAP: 20 (2)
- Server SAP: 16
- Context name: Logical name addressing
- Mechanism name: Low Level security. Password default is ‘12345’
- Conformance: GET, Block transfer with GET, SET, ACTION, SELECTIVE ACCESS

2 For OMNIPOWER software revision F1 (Only) the Client SAP is 19.

Is there anyone out there that could help.

Thanks in advance.

Martin.

Martin Hallberg

9 years 12 months ago

The connection is now working using the default settings in the tool, my fault. Bad grounding on the serial interface, was the cause.

Hey Martin
Hope you can help me, I try to connect to CCC with a USB>Serial cabel but with no succes, could you help me the with wiring/setup to the serial adapter, I use pin 6, 5 and 2, (gnd, data out, data in).

BR Tommy

asbjoern

7 years 4 months ago

Hi Tommy
Did you find a way to connect to the CCC interface?
My best guess is that it is just a 3.3v uart, but I have not been able to confirm this.

Tbnilen

7 years 4 months ago

No, but i’ll try to buy the adapter to FTDI connection.

Martin Hallberg

7 years 3 months ago

Hi.
Everyone I just saw this message in my spam folder.
Is help still wanted?

BEst regards

Martin Hallberg
Lansen Systems AB
Wireless BUilding TEchnology
www.lansen.se

Kurumi

7 years 3 months ago

Hi,

I have asked this from Kamstrup, but not received reply yet. Sometimes it's taking some time. I believe that amount of the peoples who can answer this in Kamstrup is very limited. :-)

BR,
Mikko
