Hi Kurumi,

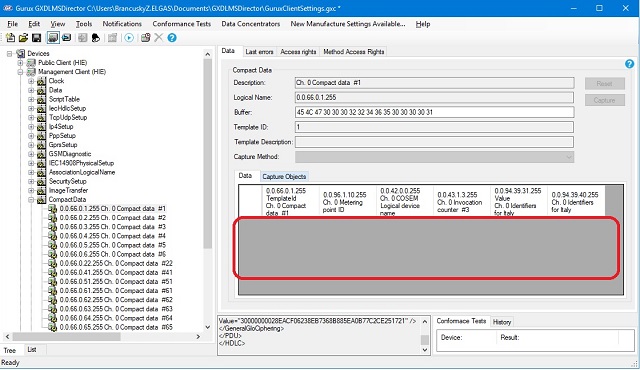

I tried to show Compact data object (IC=62) in DLMSDirector. But only first row (list of captured objects) is displayed. I expect that values of captured objects (presented in response) will be showed on the second line, similiar as in case of profiles. What shall I do to see also the values of captured objects ?
Attachment : screenshot
Thank you in advance.
BR,
Zdenek
<HDLC len="34" >
<TargetAddress Value="1" />
<SourceAddress Value="1" />
<FrameType Value="96" />
<PDU>
<!-- DLMS system title:
Manufacturer Code: SAC
Serial number: 4412225
-->
<!-- Invocation Counter: 283 -->
<!-- Decrypt data: C0 01 C1 00 3E 00 00 42 00 01 FF 03 00
<GetRequest>
<GetRequestNormal>
# Priority: High, ServiceClass: Confirmed, Invoke ID: 1
<InvokeIdAndPriority Value="C1" />
<AttributeDescriptor>
# CompactData
<ClassId Value="003E" />
# 0.0.66.0.1.255
<InstanceId Value="0000420001FF" />
# CaptureObjects
<AttributeId Value="03" />
</AttributeDescriptor>
</GetRequestNormal>
</GetRequest>
-->
<GeneralGloCiphering>
<SystemTitle Value="5341435341435341" />
<CipheredService Value="300000011B8E437307646948BE7440594E40B45BC7B48E1428CADD24267F" />
</GeneralGloCiphering>
</PDU>
</HDLC>
<HDLC len="88" >
<TargetAddress Value="1" />
<SourceAddress Value="1" />
<FrameType Value="98" />
<NextFrame Value="DB08871501005046220081A13000000119F0E15848DFECEC5956CD1443B844D79153F8415B1AF42BAA2269E65FB7415D2DDF17E9F26EF6028F452FF331551920E7542EC4C01CEC0615B709F2FDED70889EE45C8CD3C8DC27DBB2D9A7CB5C13D0E69A824FFF29E7014B9392E4BD498A62363A8A34A54720CA49B6E99689" />
</HDLC>
<HDLC len="9" >
<TargetAddress Value="1" />
<SourceAddress Value="1" />
<!-- S frame. -->
<FrameType Value="B1" />
<Command Value="NextFrame" />
</HDLC>
<HDLC len="38" >
<TargetAddress Value="1" />
<SourceAddress Value="1" />
<FrameType Value="9A" />
<NextFrame Value="A298F0D38367F1C2D90EEC791B18654FDEE86A21C7893C3A26B2AD0ABF5EF9A02EB8563024FD17FF8D93EE2FD401AC31" />
</HDLC>
<HDLC len="34" >
<TargetAddress Value="1" />
<SourceAddress Value="1" />
<FrameType Value="D8" />
<PDU>
<!-- DLMS system title:
Manufacturer Code: SAC
Serial number: 4412225
-->
<!-- Invocation Counter: 284 -->
<!-- Decrypt data: C0 01 C1 00 3E 00 00 42 00 01 FF 02 00
<GetRequest>
<GetRequestNormal>
# Priority: High, ServiceClass: Confirmed, Invoke ID: 1
<InvokeIdAndPriority Value="C1" />
<AttributeDescriptor>
# CompactData
<ClassId Value="003E" />
# 0.0.66.0.1.255
<InstanceId Value="0000420001FF" />
# Buffer
<AttributeId Value="02" />
</AttributeDescriptor>
</GetRequestNormal>
</GetRequest>
-->
<GeneralGloCiphering>
<SystemTitle Value="5341435341435341" />
<CipheredService Value="300000011C608066399009170CC1DF735E27E696D3558D28D7473A43223A" />
</GeneralGloCiphering>
</PDU>
</HDLC>
<HDLC len="68" >
<TargetAddress Value="1" />
<SourceAddress Value="1" />
<FrameType Value="BC" />
<PDU>
<!-- UNI/TS system title:
Manufacturer: ELG
Serial number: 002246500001
-->
<!-- Invocation Counter: 282 -->
<!-- Decrypt data: C4 01 C1 00 09 10 45 4C 47 30 30 30 32 32 34 36 35 30 30 30 30 31 09 29 01 0E 31 31 32 32 33 33 34 34 35 35 36 36 31 31 00 00 00 00 00 00 00 00 10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
<GetResponse>
<GetResponseNormal>
# Priority: High, ServiceClass: Confirmed, Invoke ID: 1
<InvokeIdAndPriority Value="C1" />
<Result>
<Data>
# ELG0002246500001
<OctetString Value="454C4730303032323436353030303031" />
</Data>
</Result>
</GetResponseNormal>
</GetResponse>
-->
<GeneralGloCiphering>
<SystemTitle Value="8715010050462200" />
<CipheredService Value="300000011A636A48B1A694F6424FD86D990BB776E64D40E444935BF3491F84DEAFAA03A8BB0FB36A867F7009B4BA9A9C0FF44D95049E6A9C6BA6623693D8CDEAC562C8C5D6138B58E50C7F458C9D4257DC3C" />
</GeneralGloCiphering>
</PDU>
</HDLC>
<HDLC len="34" >
<TargetAddress Value="1" />
<SourceAddress Value="1" />
<FrameType Value="FA" />
<PDU>
<!-- DLMS system title:
Manufacturer Code: SAC
Serial number: 4412225
-->
<!-- Invocation Counter: 285 -->
<!-- Decrypt data: C0 01 C1 00 3E 00 00 42 00 01 FF 04 00
<GetRequest>
<GetRequestNormal>
# Priority: High, ServiceClass: Confirmed, Invoke ID: 1
<InvokeIdAndPriority Value="C1" />
<AttributeDescriptor>
# CompactData
<ClassId Value="003E" />
# 0.0.66.0.1.255
<InstanceId Value="0000420001FF" />
# TemplateId
<AttributeId Value="04" />
</AttributeDescriptor>
</GetRequestNormal>
</GetRequest>
-->
<GeneralGloCiphering>
<SystemTitle Value="5341435341435341" />
<CipheredService Value="300000011D76AEE4B4A0E9FC3BF887A5A4D2D62015C4CF948679D3F33A53" />
</GeneralGloCiphering>
</PDU>
</HDLC>
<HDLC len="2D" >
<TargetAddress Value="1" />
<SourceAddress Value="1" />
<FrameType Value="DE" />
<PDU>
<!-- UNI/TS system title:
Manufacturer: ELG
Serial number: 002246500001
-->
<!-- Invocation Counter: 283 -->
<!-- Decrypt data: C4 01 C1 00 11 01
<GetResponse>
<GetResponseNormal>
# Priority: High, ServiceClass: Confirmed, Invoke ID: 1
<InvokeIdAndPriority Value="C1" />
<Result>
<Data>
<UInt8 Value="01" />
</Data>
</Result>
</GetResponseNormal>
</GetResponse>
-->
<GeneralGloCiphering>
<SystemTitle Value="8715010050462200" />
<CipheredService Value="300000011B368F295E00754E2F7990AD9BD84F7E78030C" />
</GeneralGloCiphering>
</PDU>
</HDLC>
Hello Kurumi, I tested the…
Hello Kurumi,
I tested the possibility to display CompactData also in the newest version of DLMSDirector. The behaviour is the same as before.
Can you inform me please, if the fact that data of CompactData objects are not diplayed is the expected behaviour ? Or the problem is on my side and I should change something ?
Thank you in advance for your answer.
BR,
Zdenek
