Hello good afternoon.
I am with a problem. when I send next command
7E A0 4D 02 21 03 76 53 96 E6 E6 00 C0 01 C1 00 07 00 00 62 01 01 FF 02 01 01 02 04 02 04 12 00 08 09 06 00 00 01 00 00 FF 0F 02 12 00 00 09 0C 07 E5 08 04 02 0C 05 34 00 80 00 00 09 0C 07 E5 09 04 05 0C 05 34 00 80 00 00 01 00 2D D6 7E
<HDLC len="4C" >
<!-- Logical address:1, Physical address:16 -->
<TargetAddress Value="90" />
<SourceAddress Value="1" />
<FrameType Value="76" />
<PDU>
<GetRequest>
<GetRequestNormal>
<!-- Priority: High, ServiceClass: Confirmed, Invoke ID: 1 -->
<InvokeIdAndPriority Value="C1" />
<AttributeDescriptor>
<!-- ProfileGeneric -->
<ClassId Value="0007" />
<!-- 0.0.98.1.1.255 -->
<InstanceId Value="0000620101FF" />
<AttributeId Value="02" />
</AttributeDescriptor>
<AccessSelection>
<AccessSelector Value="01" />
<AccessParameters>
<Structure Qty="04" >
<Structure Qty="04" >
<UInt16 Value="0008" />
<!-- 0.0.1.0.0.255 -->
<OctetString Value="0000010000FF" />
<Int8 Value="02" />
<UInt16 Value="0000" />
</Structure>
<OctetString Value="07E50804020C053400800000" />
<OctetString Value="07E50904050C053400800000" />
<Array Qty="00" >
</Array>
</Structure>
</AccessParameters>
</AccessSelection>
</GetRequestNormal>
</GetRequest>
</PDU>
</HDLC>
I get this as an answer:
7E A0 08 03 02 21 91 F3 02 7E
<HDLC len="A" >
<TargetAddress Value="1" />
<!-- Logical address:1, Physical address:16 -->
<SourceAddress Value="90" />
<!-- S frame. -->
<FrameType Value="91" />
<Command Value="NextFrame" />
</HDLC>
this problem causes it when I order an OBIS 0.0.21.0.6.255 Instantaneous Energy Values
I leave the examples, as in one case it works correctly and with the other it produces that error and does not bring me the requested information
Example with error:
04/09/2021 14:48:23 | TX: >> 7E A0 08 02 21 03 93 86 C1 7E
04/09/2021 14:48:23 | RX: << 7E A0 1F 03 02 21 73 73 42 81 80 12 05 01 F8 06 01 F0 07 04 00 00 00 01 08 04 00 00 00 01 3D 9B 7E
04/09/2021 14:48:23 | TX: >> 7E A0 45 02 21 03 10 43 CA E6 E6 00 60 36 A1 09 06 07 60 85 74 05 08 01 01 8A 02 07 80 8B 07 60 85 74 05 08 02 01 AC 0A 80 08 30 30 30 30 30 30 30 32 BE 10 04 0E 01 00 00 00 06 5F 1F 04 00 00 18 1F 02 00 F5 EE 7E
04/09/2021 14:48:23 | RX: << 7E A0 38 03 02 21 30 A1 62 E6 E7 00 61 29 A1 09 06 07 60 85 74 05 08 01 01 A2 03 02 01 00 A3 05 A1 03 02 01 00 BE 10 04 0E 08 00 06 5F 1F 04 00 00 18 1F 00 F0 00 07 4A 56 7E
04/09/2021 14:48:23 | TX: >> 7E A0 1A 02 21 03 32 CD D7 E6 E6 00 C0 01 C1 00 01 00 00 60 01 00 FF 02 00 89 A0 7E
04/09/2021 14:48:23 | RX: << 7E A0 1D 03 02 21 52 70 64 E6 E7 00 C4 01 C1 00 09 0A 30 31 34 31 39 31 31 36 38 37 4F C6 7E
04/09/2021 14:48:23 | TX: >> 7E A0 1A 02 21 03 54 FD D1 E6 E6 00 C0 01 C1 00 03 01 00 01 08 00 FF 03 00 EA 71 7E
04/09/2021 14:48:24 | RX: << 7E A0 17 03 02 21 74 EC 6C E6 E7 00 C4 01 C1 00 02 02 0F 00 16 1E 61 D4 7E
04/09/2021 14:48:24 | TX: >> 7E A0 1A 02 21 03 76 ED D3 E6 E6 00 C0 01 C1 00 07 00 00 15 00 06 FF 02 00 CE 95 7E
04/09/2021 14:48:26 | RX: << 7E A0 41 03 02 21 96 0A E6 E6 E7 00 C4 01 C1 00 01 01 02 07 09 0C 07 E5 09 04 06 0E 2E 09 FF 80 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 AD FF 7E
04/09/2021 14:48:30 | TX: >> 7E A0 4D 02 21 03 76 53 96 E6 E6 00 C0 01 C1 00 07 00 00 62 01 01 FF 02 01 01 02 04 02 04 12 00 08 09 06 00 00 01 00 00 FF 0F 02 12 00 00 09 0C 07 E5 08 04 02 0C 05 34 00 80 00 00 09 0C 07 E5 09 04 05 0C 05 34 00 80 00 00 01 00 2D D6 7E
04/09/2021 14:48:31 | RX: << 7E A0 08 03 02 21 91 F3 02 7E
Example without error:
TX: 7E A0 08 02 21 03 93 86 C1 7E >> 12:06:19.736
RX: 7E A0 1F 03 02 21 73 73 42 81 80 12 05 01 F8 06 01 F0 07 04 00 00 00 01 08 04 00 00 00 01 3D 9B 7E >> 12:06:19.799
TX: 7E A0 45 02 21 03 10 43 CA E6 E6 00 60 36 A1 09 06 07 60 85 74 05 08 01 01 8A 02 07 80 8B 07 60 85 74 05 08 02 01 AC 0A 80 08 30 30 30 30 30 30 30 32 BE 10 04 0E 01 00 00 00 06 5F 1F 04 00 00 18 1F 02 00 F5 EE 7E >> 12:06:19.831
RX: 7E A0 38 03 02 21 30 A1 62 E6 E7 00 61 29 A1 09 06 07 60 85 74 05 08 01 01 A2 03 02 01 00 A3 05 A1 03 02 01 00 BE 10 04 0E 08 00 06 5F 1F 04 00 00 18 1F 00 F0 00 07 4A 56 7E >> 12:06:20.050
TX: 7E A0 1A 02 21 03 32 CD D7 E6 E6 00 C0 01 C1 00 01 00 00 60 01 00 FF 02 00 89 A0 7E >> 12:06:20.351
RX: 7E A0 1D 03 02 21 52 70 64 E6 E7 00 C4 01 C1 00 09 0A 30 31 34 31 39 31 31 36 38 37 4F C6 7E >> 12:06:20.445
TX: 7E A0 1A 02 21 03 54 FD D1 E6 E6 00 C0 01 C1 00 03 01 00 01 08 00 FF 03 00 EA 71 7E >> 12:06:20.914
RX: 7E A0 17 03 02 21 74 EC 6C E6 E7 00 C4 01 C1 00 02 02 0F 00 16 1E 61 D4 7E >> 12:06:21.010
TX: 7E A0 4D 02 21 03 76 53 96 E6 E6 00 C0 01 C1 00 07 00 00 62 01 01 FF 02 01 01 02 04 02 04 12 00 08 09 06 00 00 01 00 00 FF 0F 02 12 00 00 09 0C 07 E5 06 01 02 0C 05 34 00 80 00 00 09 0C 07 E5 07 10 05 0C 05 34 00 80 00 00 01 00 AF 04 7E >> 12:06:21.475
RX: 7E A0 E7 03 02 21 96 56 37 E6 E7 00 C4 02 C1 00 00 00 00 01 00 81 CF 01 01 02 64 09 0C 07 E4 0A 01 04 00 00 00 FF 80 00 00 09 0C 07 E5 07 01 04 00 00 00 FF 80 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 48 BF 7E >> 12:06:21.913
TX: 7E A0 14 02 21 03 98 25 BC E6 E6 00 C0 02 C1 00 00 00 01 51 BE 7E >> 12:06:22.055
RX: 7E A0 C7 03 02 21 B8 BB 9F E6 E7 00 C4 02 C1 00 00 00 00 02 00 81 AF 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 30 75 7E >> 12:06:22.340
TX: 7E A0 14 02 21 03 BA 35 BE E6 E6 00 C0 02 C1 00 00 00 02 CA 8C 7E >> 12:06:22.356
RX: 7E A0 D0 03 02 21 DA 33 5B E6 E7 00 C4 02 C1 00 00 00 00 03 00 81 B8 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 06 00 00 00 00 09 0C 07 E4 0A 01 04 00 00 00 FF 80 00 00 06 00 00 00 00 09 0C 07 E4 0A 01 04 00 00 00 FF 80 00 00 06 00 00 00 00 09 0C 07 E4 0A 01 04 00 00 00 FF 80 00 00 06 00 00 00 00 09 0C 07 E4 0A 01 04 00 00 00 FF 80 00 00 06 00 00 00 00 09 0C 07 E4 0A 01 04 00 00 00 FF 80 00 00 06 00 00 00 00 09 0C 07 E4 0A 01 04 00 00 00 FF 80 00 00 E6 4C 7E >> 12:06:22.644
TX: 7E A0 14 02 21 03 DC 05 B8 E6 E6 00 C0 02 C1 00 00 00 03 43 9D 7E >> 12:06:22.911
RX: 7E A0 2A 03 02 21 FC 09 CC E6 E7 00 C4 02 C1 01 00 00 00 04 00 13 06 00 00 00 00 09 0C 07 E4 0A 01 04 00 00 00 FF 80 00 00 F4 48 7E >> 12:06:23.038
TX: 7E A0 08 02 21 03 53 8A 07 7E >> 12:06:23.451
RX: 7E A0 1F 03 02 21 73 73 42 81 80 12 05 01 F8 06 01 F0 07 04 00 00 00 01 08 04 00 00 00 01 3D 9B 7E >> 12:06:23.531
thank you very much best regards.
Ariel
Hi Ariel,
Hi Ariel,
Because this is Instantaneous Energy Values there is only one row. I believe that this is an issue with the meter. Try to read it with a normal read. I hope it will help.
BR,
Mikko
Hi Mikko! Thank you very much
Hi Mikko! Thank you very much for answering.
I think I'm doing what you recommend.
// ORDER: 0.0.21.0.6.255 7 Instantaneous Energy Values
// <GetRequest>
// <GetRequestNormal>
// <! - Priority: High, ServiceClass: Confirmed, Invoke ID: 1 ->
// <InvokeIdAndPriority Value = "C1" />
// <AttributeDescriptor>
// <! - ProfileGeneric ->
// <ClassId Value = "0007" />
// <! - 0.0.21.0.6.255 -> Instantaneous Energy Values
// <InstanceId Value = "0000150006FF" />
// <AttributeId Value = "02" />
// </AttributeDescriptor>
// </GetRequestNormal>
// </GetRequest>
string Request = "7E A0 1A 02 21 03 76 ED D3 E6 E6 00 C0 01 C1 00 07 00 00 15 00 06 FF 02 00 CE 95 7E";
and I receive:
<GetResponse>
<GetResponseNormal>
<InvokeIdAndPriority Value = \ "C1 \" />
<Result>
<Data>
<Array Qty = \ "01 \">
<Structure Qty = \ "07 \">
<OctetString Value = \ "07E50906010F0713FF800000 \ "/>
<UInt32 Value = \" 00000000 \ "/>
<UInt32 Value = \" 00000000 \ "/>
<UInt32 Value = \" 00000000 \ "/>
<UInt32 Value = \" 00000000 \ "/>
<UInt32 Value = \ "00000000 \" />
<UInt32 Value = \ "00000000 \" />
</Structure> </Array> </Data> </Result> </GetResponseNormal> </GetResponse>
Am I placing the order correctly?
I realized that when

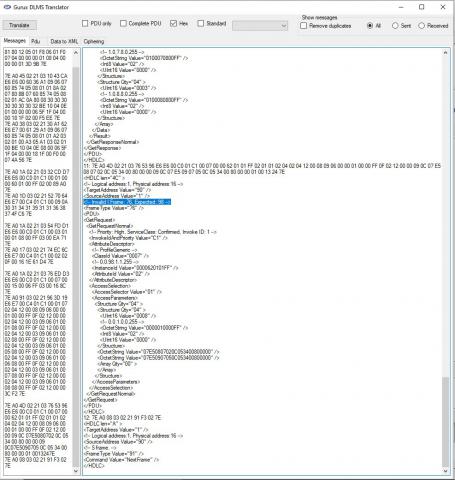

I realized that when translating everything in the DLMS Translator, the part that does not bring me information, the meter says the following: <!-- Invalid I Frame: 76. Expected: 98 -->
<HDLC len="4C" >
<!-- Logical address:1, Physical address:16 -->
<TargetAddress Value="90" />
<SourceAddress Value="1" />
<!-- Invalid I Frame: 76. Expected: 98 -->
<FrameType Value="76" />
<PDU>
<GetRequest>
<GetRequestNormal>
<!-- Priority: High, ServiceClass: Confirmed, Invoke ID: 1 -->
<InvokeIdAndPriority Value="C1" />
<AttributeDescriptor>
<!-- ProfileGeneric -->
<ClassId Value="0007" />
<!-- 0.0.98.1.1.255 -->
<InstanceId Value="0000620101FF" />
<AttributeId Value="02" />
</AttributeDescriptor>
<AccessSelection>
<AccessSelector Value="01" />
<AccessParameters>
<Structure Qty="04" >
<Structure Qty="04" >
<UInt16 Value="0008" />
<!-- 0.0.1.0.0.255 -->
<OctetString Value="0000010000FF" />
<Int8 Value="02" />
<UInt16 Value="0000" />
</Structure>
<OctetString Value="07E50807020C053400800000" />
<OctetString Value="07E50907050C053400800000" />
<Array Qty="00" >
</Array>
</Structure>
</AccessParameters>
</AccessSelection>
</GetRequestNormal>
</GetRequest>
</PDU>
</HDLC>
12: 7E A0 08 03 02 21 91 F3 02 7E
<HDLC len="A" >
<TargetAddress Value="1" />
<!-- Logical address:1, Physical address:16 -->
<SourceAddress Value="90" />
<!-- S frame. -->
<FrameType Value="91" />
<Command Value="NextFrame" />
</HDLC>
What can be the cause of this error?
Hi,
Hi,
Select "Supported Services" tab from the meter settings and un-check "Access" service. Your meter tells that the Access service is supported when the connection is made, but it seems that meter really doesn't support it.
BR,
Mikko
